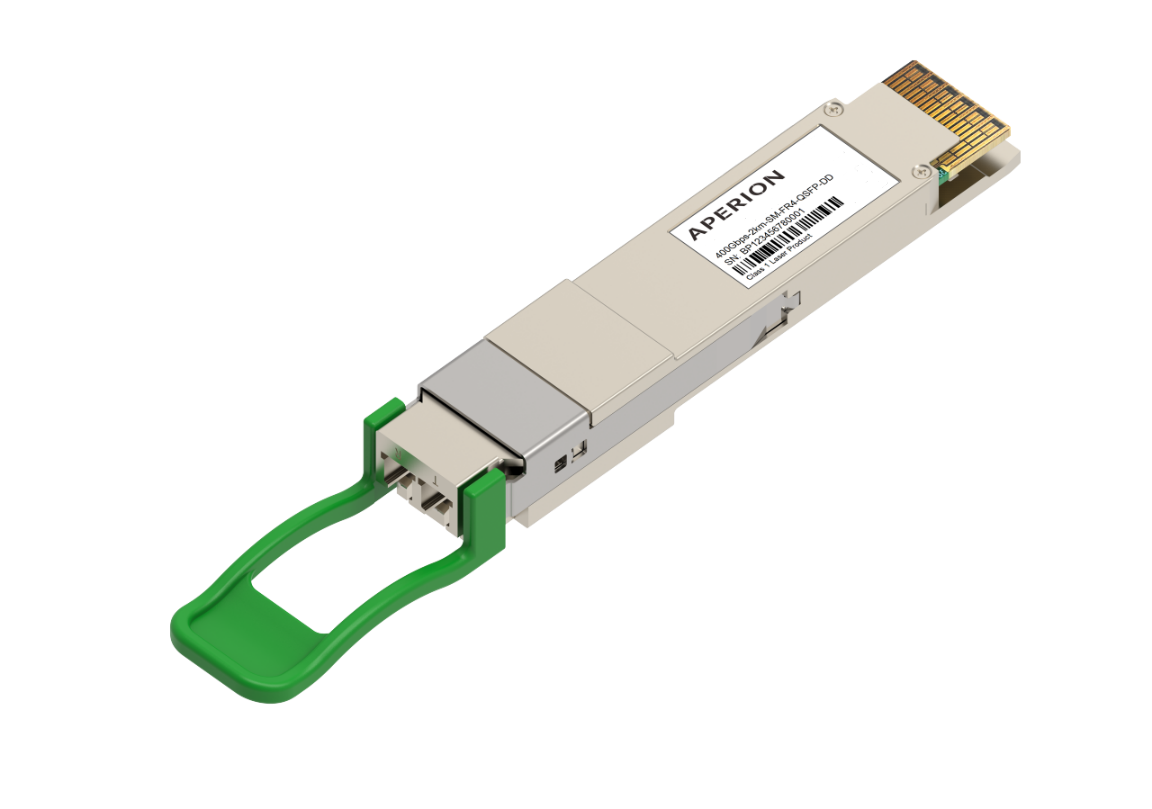

400G QSFP56-DD FR4

links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 400G Ethernet specs; QSFP-DD MSA.

Key Specifications
Up to 106.25Gbps data rate per channel by PAM4 modulation
4 duplex channels transmitters and receivers
4x100G PAM4 EML lasers
Duplex LC optical interface
Single +3.3V power supply
DDM function implemented
Hot-pluggable QSFP-DD form factor
Maximum link length of 2km on LC SMF fiber
Low power dissipation:<8W
Operating temperature range: 0℃ ~ +70 ℃
Application
Ethernet & Datacom
Telecom Networking
Order Information
TR4003158F403D00
