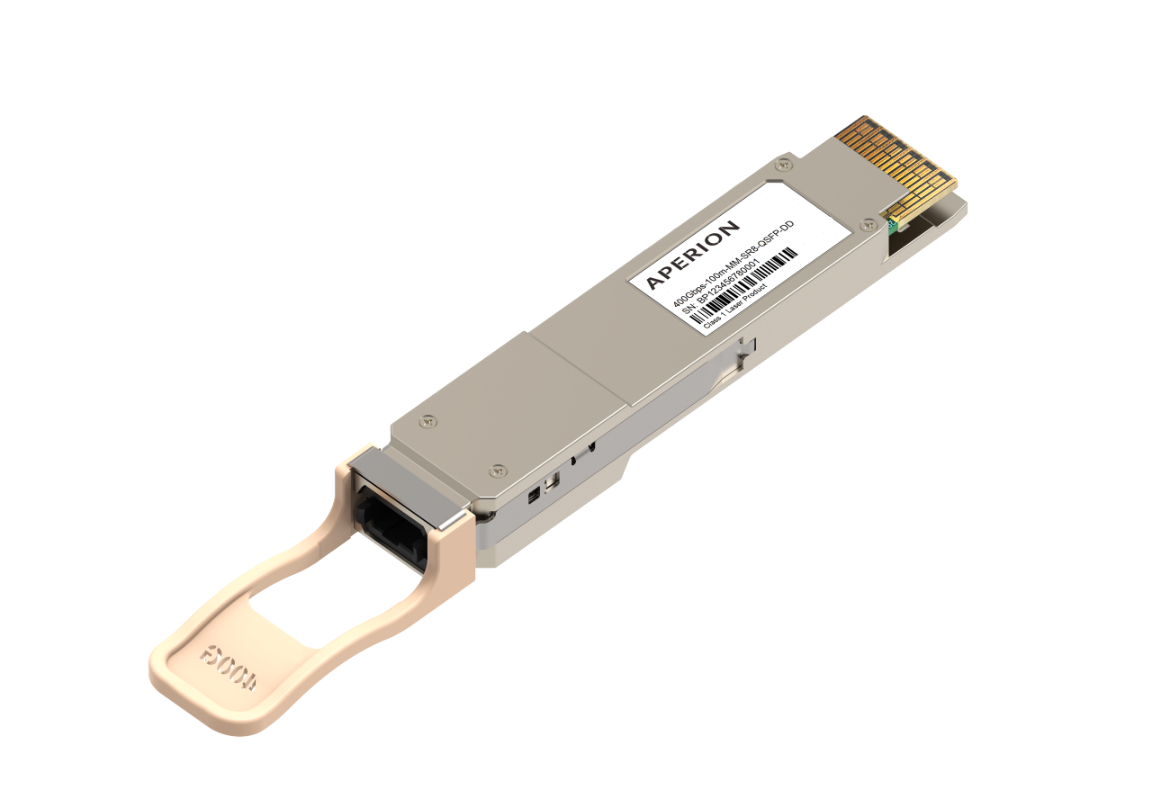

400G QSFP56-DD SR8

links up to 53.125 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with the high performance VCSEL laser and high sensitivity PIN receiver. It is compliant with 400G Ethernet specs; QSFP-DD MSA.

Key Specifications
Up to 53.125Gbps data rate per channel by PAM4 modulation
8 duplex channels transmitters and receivers
Integrated 850nm VCSEL array and PD array
Single MPO-16 connector receptacle optical
interface compliant
Single +3.3V power supply
DDM function implemented
Hot-pluggable QSFP-DD form factor
Maximum link length of 100m on 16 core
MPO OM4 (MMF) fiber
Low power dissipation:<10W
Operating temperature range: 0℃ ~ +70 ℃
Application
Ethernet & Datacom
Telecom Networking
Order Information
TR4001158S852D00
