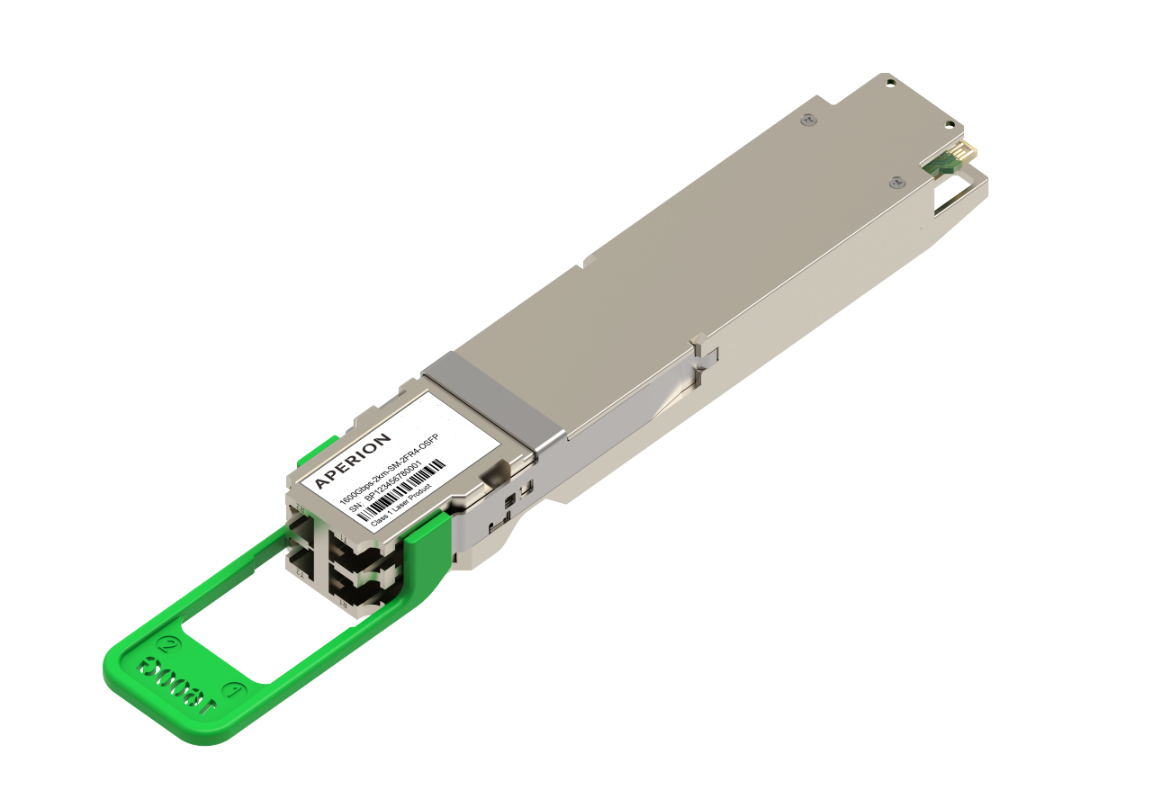

1.6T OSFP224 2*FR4

links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.

Key Specifications
Hot-pluggable OSFP1600 form factor
Up to 226.875Gbps data rate per channel by PAM4 modulation
Power dissipation: 30W
Operating temperature range: 0℃ ~ 70℃
Single +3.3V power supply
Maximum link length of 2km on SMF fiber
8x200G PAM4 Sipho-based CWDM transmitter
8x200G PAM4 retimed 1600GAUI-8 electrical interface
Dual Duplex LC Optical Interface
DDM function implemented
Application
Ethernet & Datacom
Telecom Networking
Order Information
Dual Duplex LC Closed Top: TR16X3228F814D00
Dual Duplex LC RHS: TR16X3208F814D00
